Four side moulder series

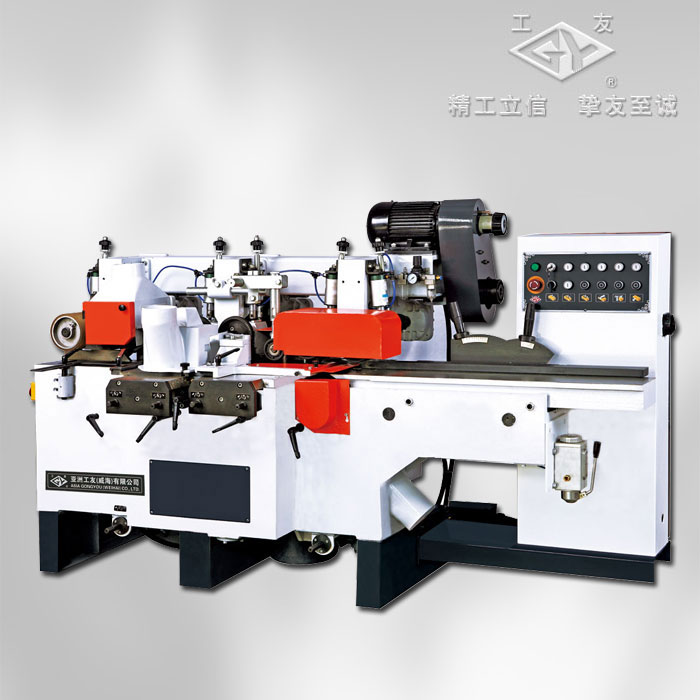

MB4012A 4-side Moulder( Five/Six Spindles )
MB4012A 4-side Moulder( Five/Six Spindles )
Technical Specification Unit MB4012A
Max. planing width mm 125
Min. planing width mm 25
Max. planing thickness mm 80
Min. planing thickness mm 10
Front table length mm 1020
Max. front table moving distance mm 5
Max.right fence moving distance mm 10
Feeding speed m/min 5~20
Overall dimensions(L×W×H)
mm
2600×1400×1420
Weight kg 1600
Compressed air demand m3/h 0.1
Dust outlet dia. mm 120
Feed roller diameter mm 140
Spindle speed r/min 6000
Level amount of cutter spindle motion(axial) mm 30
Vertical amount of cutter spindle motion(axial) mm 20
Total power:
Feeding motor power kW 1.5
Lifting power of feeding motor kW 0.55
Top horizontal cutter motor kW 3.0
Motor power kW 5.5
Bottom horizontal cutter motor kW 3.0
Total power
kW 13.55
Air pressure MPa 0.6
